Product Overview

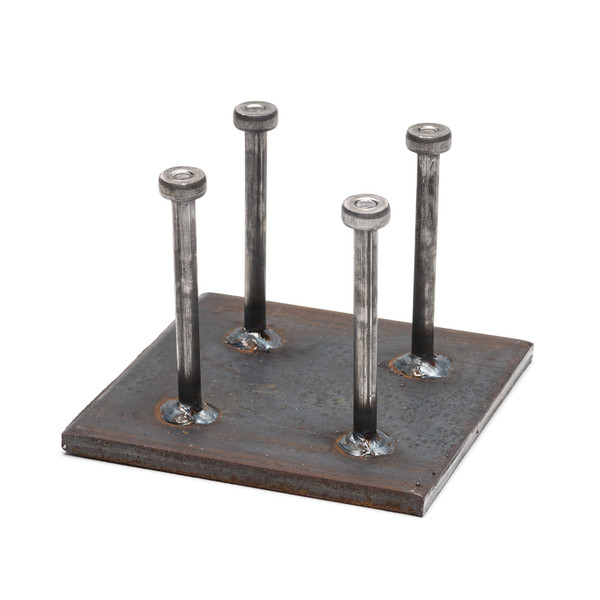

Concrete steel embed plates are critical components when marrying steel with concrete slabs. In the AEC industry, concrete embeds serve to transmit structural loads by tensions, shear, etc. They're usually installed before the concrete is poured and commonly found on job sites involving steel framing, curtain wall systems, and structural applications. Please reference drawing (found in images) for more info.
Specifications:
- Hot-Rolled steel plate,
- 10" x 8" dimensions,
- 0.50" plate thickness,
- Two 5/8" Nelson studs,
- 7" approximate standing height.
